OM3 Multimode Fiber Optic Cables 50/125 is one of the most commonly used multimode optical fiber; the other commonly used is 62.5/125 types. The 50 and 125 is measurement by the unit micron. One meter is equal to one million micron. There is a special kind 50/125 multimode fibers, which is called OM3 50/125. People usually refer 62.5/125 as the OM1 MMF, common type 50/125 MMF as OM2, OM3 is also 50/125, but it is different from OM2 because it support 10Gig data transmission. The OM3 50/125 fiber optic cable is also called laser optimized fiber cable. Both OM1 and OM2 multimode cables use the orange color jacket (standard practice for commonly used indoor multimode), OM3 use a special color, which is called Aqua. LC to LC Multimode 10 Gigabit OM3 Aqua Fiber Optic Patch Cord

The image displayed above may not accurately represent the color of the product you are about to purchase.

FGX-LCLC-03M SKU #: FGX-LCLC-03M $18.99 LC to LC Multimode Duplex High Speed 10 Gigabit Aqua Fiber Optic Ethernet Patch Cable OM3 50/125 Length: 3 Meter QTY:

Multi-mode fiber has higher "light-gathering" capacity than single-mode optical fiber. In practical terms, the larger core size simplifies connections and also allows the use of lower-cost electronics such as light-emitting diodes (LEDs) and vertical-cavity surface-emitting lasers (VCSELs) which operate at the 850 nm and 1300 nm wavelength (single-mode fibers used in telecommunications operate at 1310 or 1550 nm and need more costly laser sources. Single mode fibers exist for very all visible wavelengths of light). However, compared to single-mode fibers, the multi-mode



Optical Fiber Cables

visit us: www.ConnectZone.com

Quick Links 10G Fiber Cable Angled/Ultra Polished Fiber Cable

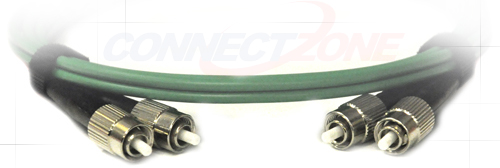

FC to FC Custom Green Multimode Fiber Optic Ethernet Patch Cable Starting at $18.99



Green Multimode Fiber Optic Patch Cable Lengths Available: 1 Meter fiber cord FC to FC 2 Meter fiber cord FC to FC 3 Meter fiber cord FC to FC 4 Meter fiber cord FC to FC 5 Meter fiber cord FC to FC 6

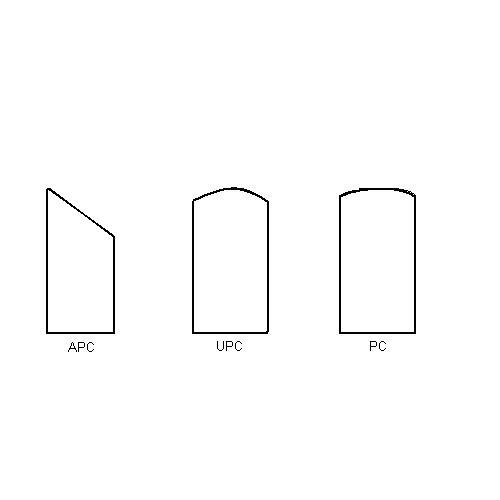

We have known that PC, UPC, APC is standard of the fiber optic connectors, PC, UPC, APC are short for: Physical Contact (PC), Ultra Physical Contact (UPC), and Angled Physical Contact (APC), they are actually the polish style of fiber optic ferrules. Below is a picture of the fiber optic ferrules. Unlike copper cables with copper thread in the connectors as connection media, fiber optic connectors are with these ceramic ferrules for connection, and different fiber optic connectors the ferrule size and length and polish styles are different, as can be seen on the picture. Such ferrules is inside the fiber optic connectors and with fiber glass from the fiber optic cable to plug into the ferrule for linking.  The different polish of the fiber optic connector ferrules result in different performance of them, mainly on the back reflection (return loss),.Generally, PC type is required at least 40dB return loss or higher, UPC is 50dB or higher, APC
